Advantages of AGICO and its services:

Inspections on rail bolts production:

As a professional leading producer for rail bolts, we have equipped with advanced multifunctional cold forming machines and other related quality inspection equipments, we also have our own R&D department. We can provide customers with high quality products in accordance with AREMA, UIC, GB, DIN, ANSI, JIS , ISO and etc, our main products include the following categories, WITH OR WITHOUT LOCK WASHERS & NUTS:

Rail Bolt

1. Button head oval neck track bolt

Specifications:

Material: Carbon steel

Grade: 8.8 10.9

Size: Dia. M5-M42

Surface: zinc plated

2. Diamond neck track bolt

Specifications:

Material: Q235, 35#, 45#

Grade: 4.6, 5.6, 8.8 10.9

Standard: UIS864-2

Surface:plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing

3. Rail bolt NF F50-008

Specifications:

Material: Q235, 35#, 45#,, 40Cr

Grade: 4.6, 5.6, 8.8 10.9

Certificate:ISO9001:2008

Surface:plain (oiled), Oxide black, Zinc, HDG

4. Fish bolt
Rail fish bolts are used for rail joint bars with railnuts and spring washers. We produce fish bolts such as BS standard, R54 rail in Indonesia, AS1085.4-1999, etc, all of which are among our hot sales.

Specifications:

Material: Q235, 35#, 45#,, 40Cr , C45

Grade: 4.8, 8.8, 10.9

Size: 22×135, 24×135, 24×145

Surface:plain (oiled), Oxide black, Zinc, HDG

5. Track bolt of Russian standard
Track bolt according to Russian standard are very popular, especially for tunnel construction.

Specifications:

Material: Q235, 35#, 45#, 40Cr

Grade: 4.6,5.6,8.8,10.9

Surface:plain (oiled), Oxide black, Zinc, HDG

6. Clip bolt
(1)HS26 & HS32 bolts & nuts are used together with rail clips to fasten ribbed tie plates.(2)Some clip bolts used for concrete sleepers and crane rails. (3) Short or long clip bolt with BSW thread are often used in African market. Round or square necks are used for steel sleeper assembling combined with rail clips.

Specifications:

Standard: UIS864-2

Material: Q235, 35#, 45#

Grade: 4.6, 5.6, 8.8

Size: M22 ×55-90

Surface: Plain, black painting or upon customer requirement

Specifications:

Standard: UIS864-2

Diameter : 18mm, 22mm

Length:125- 195mm

Grade: 4.6, 5.6

Specifications:

M20 X 60 30Kg rail

M20 X 75 30Kg rail

M22 X 66 40Kg rail

M22 X 80 48Kg rail

7. Clamp bolt and inserted bolt for Russia
Russia is a big market for clamp bolts and inserted bolts with nuts.

Specifications:

Material: Q235, 35#, 45#

Grade: 4.6, 5.6, 8.8

Size: M22 ×75, M22 ×175

Surface: Plain, black painting or upon customer requirement

8. Special bolt
Apart from the standard bolts, we are also capable of producing bolts with special or nonstandard specifications.

Specifications:

Material: Q235, 35#, 45#

Grade: 4.6, 5.6, 8.8

Surface: Plain, black painting or upon customer requirement

9. Anchor bolt
The simplest anchor bolt is a cast-in-place anchor with an embedded plastic dowel into the sleeper for anti-thefting.

Specifications:

Material: Q235

Grade: 4.6, 5.6, 8.8

Surface: Plain, black painting or upon customer requirement

10. T-bolt

Specifications:

Material: Q235, 45#

Standard:GB37-88

Size: M5-48

Grade: 4.6, 5.6, 8.8, 10.6, 12.9

Surface: Natural or according to customers' requests

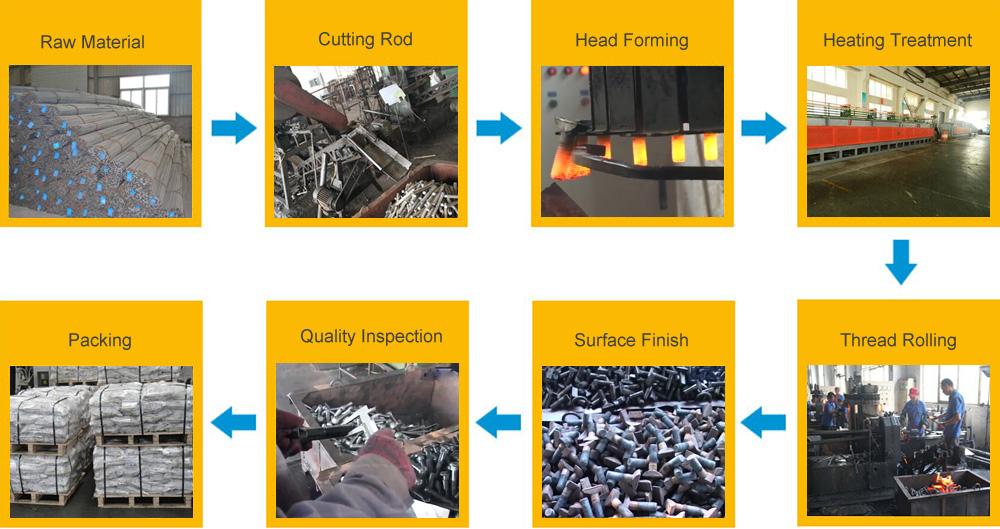

Process of Manufacture of Railway Bolts

Case Study

  1. xi'an pingliang railway
  2. fuyang lu'an railway
  3. hefei railway junction south freight yard
  4. zhangjiakou tangshan railway
  5. gaotaishan fuxin jinzhou railway
  6. lindai zhijin railway
  7. railway projects in inner mongolia
  8. lanzhou xinjiang railway
  9. shimen changsha double track railway
  10. xiamen shenzhen railway
  11. new guangzhou station
  12. fuyang huainan railway

Quality Control

Pollution control
Pollution may be caused through noise of hammer and oil fired furnace used for tempering furnace, as well as hard smoke discharged from the fuel gas. In order to avoid/ reduce noise pollution, special hammer are introduced. In the meantime, factory shed is specially designed so that it can be minimized.
Energy Conservation
Considerable energy could be saved by preheating the inlet air used in baring of diesel in oil fired furnaces.
